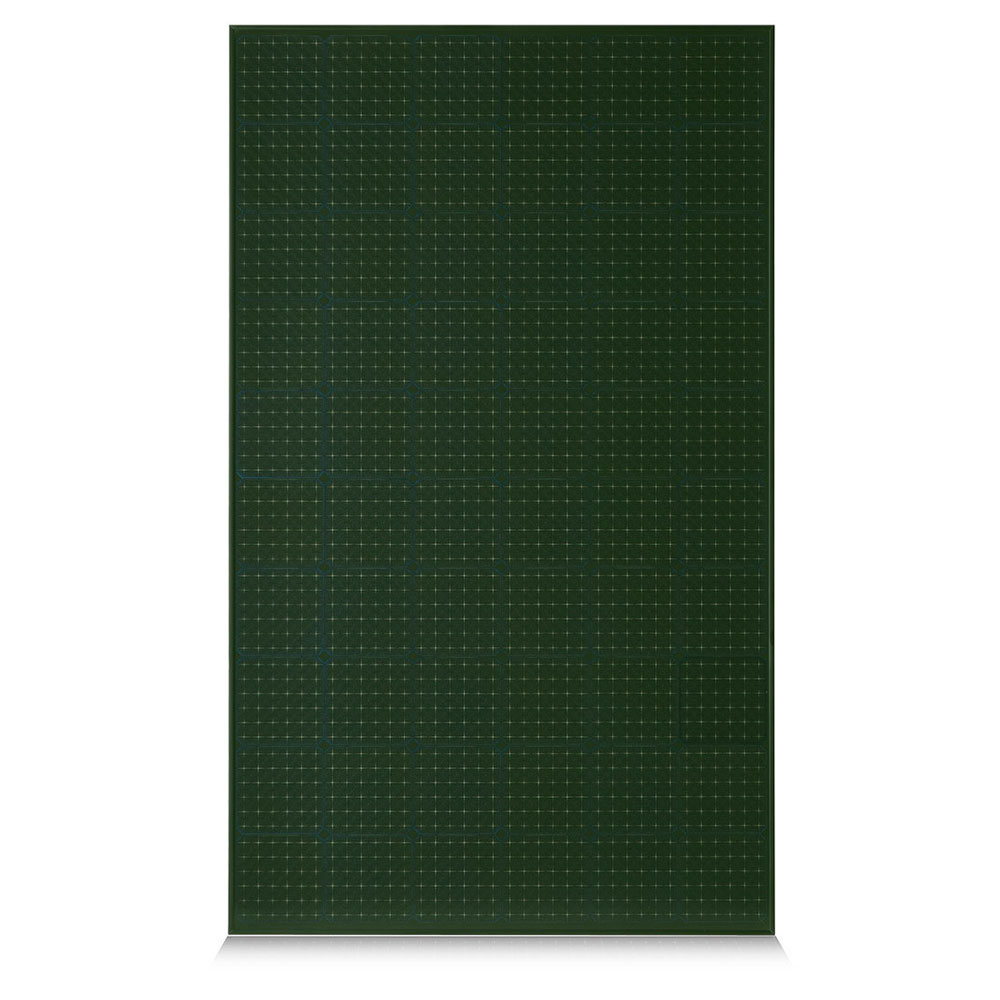

Photovoltaic Module TRIxxxSP-GG MWT 60 cells GREEN

The Trienergia TRIxxxSP-GG modules are green photovoltaic solar panels, suitable for residential systems connected to the electricity grid.

Design

Ideal for installations with high aesthetic value.

Guaranteed

Product guaranteed for 20 years.

High performance

12-year 90% performance guarantee.

Download the product datasheet

Request a quote

Technical information

TRIxxxSP-GG
Ideal for systems with high aesthetic value
60 M6 CELLS - 166 x 166 mm
MonoPERC MWT Photovoltaic Module
Dimensions 1712 x 1035 x 30 mm
Weight 20.0kg
Backsheet color GREEN
Green aluminum frame

Central JunctionBox
Compatible MC4 connectors
Product warranty: 20 years*
Performance guarantee: 12 years at 90% | 30 years at 82%
Certificates: IEC 61215 – IEC 61730 – IEC 61701 – FIRECLASS 1
*25 Years warranty only for Green Specialist GOLD installers

Additional Information

The production process, completely automatic, provides:

Positioning of the conductive backsheet made with EBfoil® BYS, which acts as a contact and connection for the positive / negative contacts on the back of the solar panel
Laying of the cells that make up the photovoltaic module: these are glued on the backsheet by the silk-screen dispensing of a special conductive glue; at the same time a quality control is performed on the cells:
– Chipping: chipping on the edge of the cell
– Breakage: cell breakage
– Microcrack: cell micro-perforation not visible to the naked eye
– Positioning: positioning of the cell
Application of an EVA (ethylene vinyl acetate) sheet, very flexible and elastic, which encapsulates the cells with the backsheet
Glass application
Flipping, rotation of the module to enter lamination resting on the glass
Panel lamination
Framing, assembly of the frame
Tests: solar simulator and electroluminescence

Available model:

TRI320SP-GG

In terms of performance, 90% efficiency is guaranteed for up to 12 years and 82% for up to 30 years of use.

The panels are assembled in the Trienergia factory in the province of Mantua.

The sale of these black photovoltaic modules is mainly aimed at installers, designers and wholesalers. To find out the cost, simply request a free quote by filling out the form in the "Request a free quote" panel.
